Product Overview
Para-aramid (poly-p-phenylene terephthalamide) filament yarn is a high-performance fiber featuring ultra-high strength, high modulus, excellent heat resistance, inherent flame retardancy and good chemical stability. It is widely used in protective equipment, ropes and cables, rubber reinforcement, friction materials, composites and other demanding applications.
Available Specifications
- Fineness Range: 200-3000 Denier / 220-3330 dtex
- Common Denier Options: 200D, 400D, 600D, 800D, 1000D, 1420D, 1500D, 3000D
- Filament Count: Single or multi-filament; common options include 1f, 2f, 3f, 6f, 12f, 24f, 36f, 48f, 72f, 144f and more
- Yarn Types: Smooth filament yarn, twisted yarn, cabled yarn, covered yarn, hybrid yarn
- Other specifications and custom structures are available on request.
Typical Technical Data (Reference)
| Property | Standard Modulus (General Purpose) |
High Modulus (HS Type) |
High Tenacity (HT Type) |
Test Method |
|---|---|---|---|---|
| Linear Density (Denier) | 200-3000 (various grades available) | ASTM D1907 | ||
| Linear Density (dtex) | 220-3330 (various grades available) | ASTM D1907 | ||
| Tensile Strength (cN/dtex) | 21-24 | 24-26 | 26-28 | ASTM D2256 |
| Tensile Modulus (cN/dtex) | 500-800 | 800-1200 | 500-800 | ASTM D2256 |
| Elongation at Break (%) | 3.0-4.0 | 2.0-2.8 | 3.0-4.0 | ASTM D2256 |
| Heat Resistance (Long Term) | ≥ 200°C | ≥ 200°C | ≥ 200°C | – |
| Decomposition Temperature | ≥ 500°C | ≥ 500°C | ≥ 500°C | TGA |
| Limiting Oxygen Index (LOI) (%) | ≥ 28 | ≥ 28 | ≥ 28 | ASTM D2863 |
| Moisture Regain (%) | 3.0-5.0 | 3.0-5.0 | 3.0-5.0 | ASTM D570 |
| Density (g/cm³) | 1.44 | 1.44 | 1.44 | ASTM D792 |

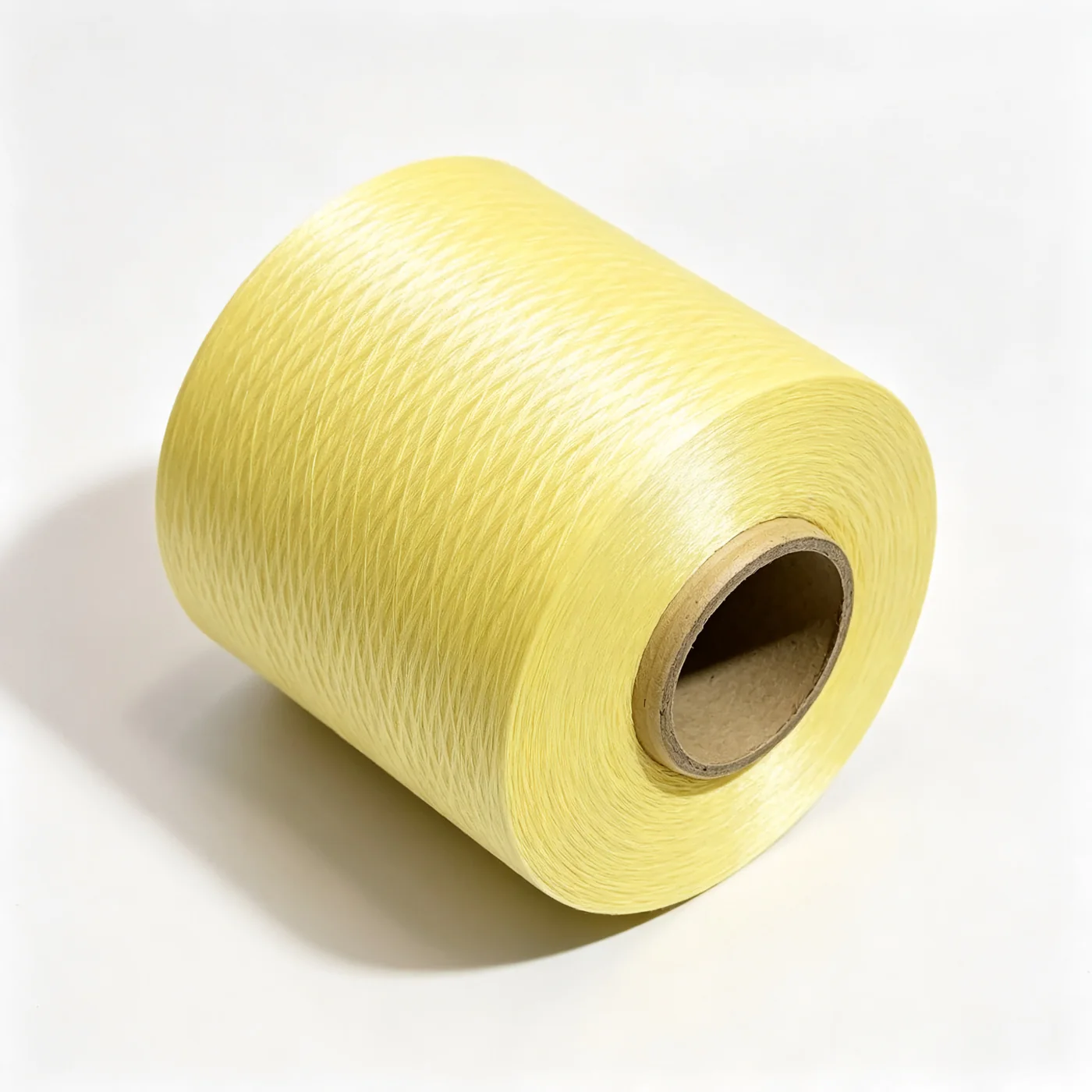

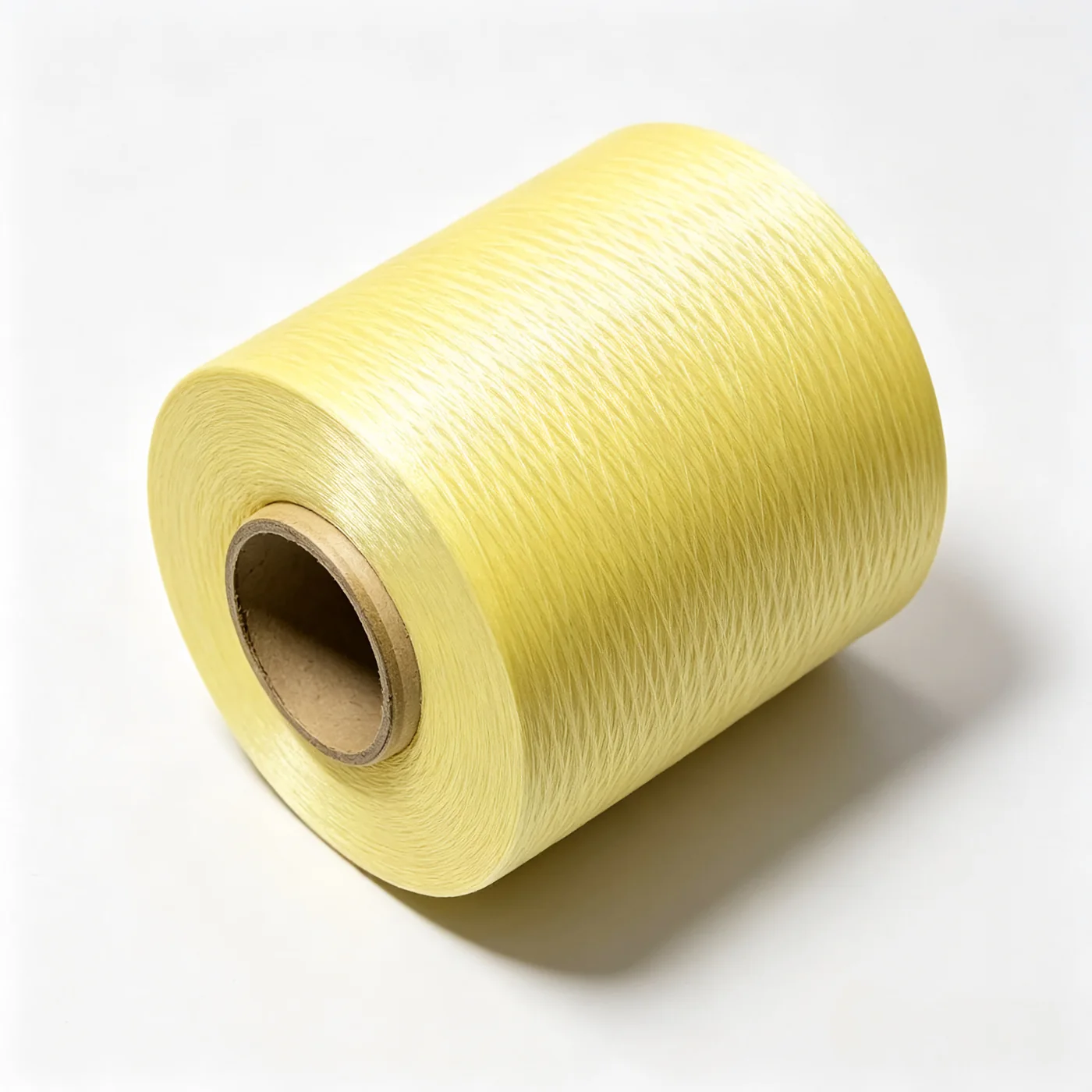

| Color | Natural yellow (standard), other colors on request | – | ||
Key Features
- Ultra-high tensile strength
- High modulus and low creep
- Excellent heat and flame resistance
- Good chemical stability
- Low density (lightweight)
- Dimensional stability
- Processable into various yarn structures
- Wide range of specifications
Typical Applications
- Protective Equipment: Bulletproof vests, helmets, protective clothing
- Ropes & Cables: Mooring ropes, winch ropes, high-strength cables
- Rubber Reinforcement: Tires, hoses, conveyor belts, industrial rubber products
- Composites: Reinforcement for aerospace, automotive and industrial composites
- Friction Materials: Clutch facings, brake pads, industrial friction products
Sample & Global Supply
Samples are available. Multiple specifications and global supply are available for customer qualification and application development.
Technical Note
The above data are typical values for reference only. Final values are subject to our factory’s official TDS.
