Description
Product Overview
Meta-aramid filament yarn is a high-performance synthetic fiber known for its excellent heat resistance, inherent flame retardancy, chemical stability and good mechanical properties. It maintains outstanding performance in harsh environments and is widely used in protective, industrial and technical textile applications.
Available Specifications
- 200D – 200 ± 10 Denier, 100F
- 1200D – 1200 ± 60 Denier, 600F

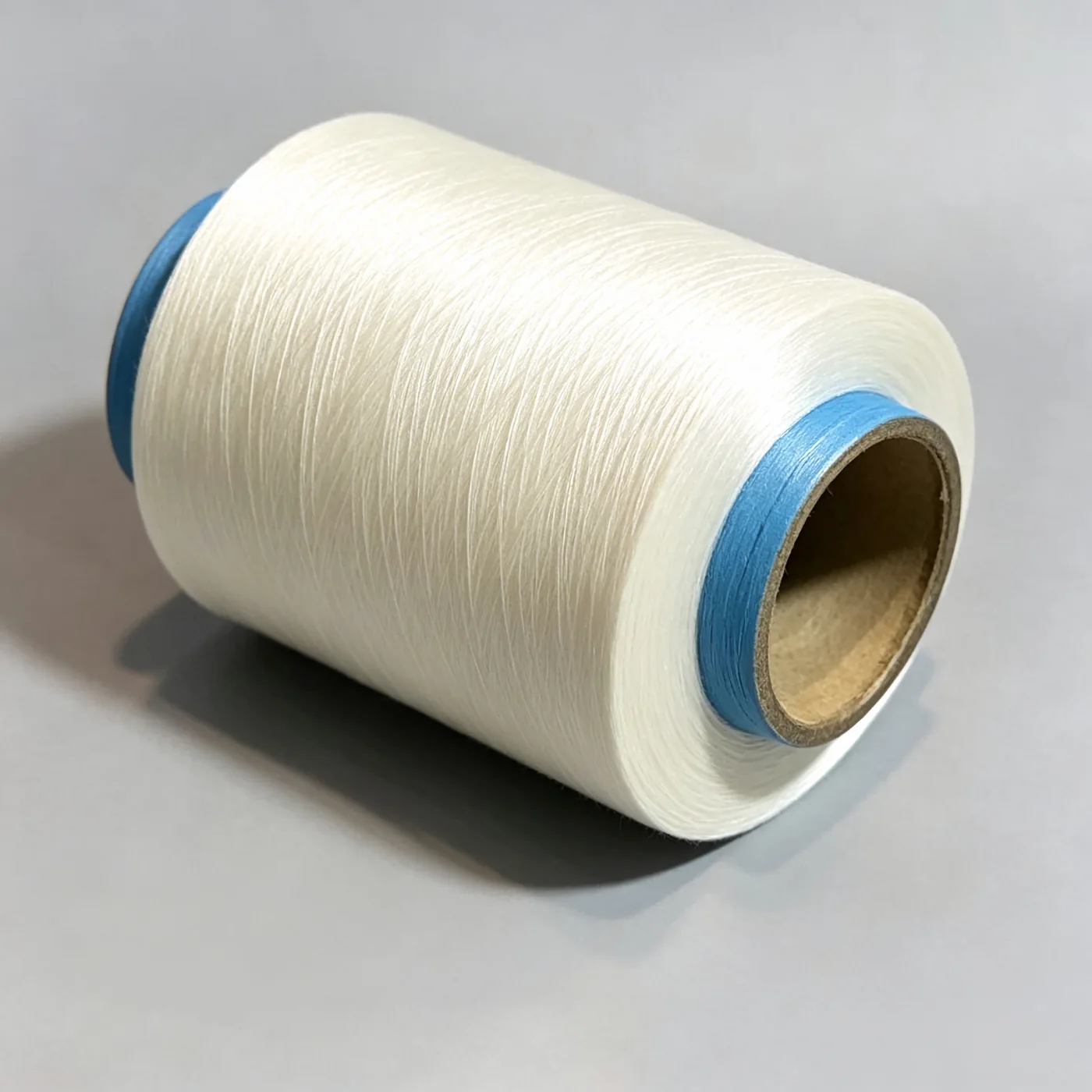

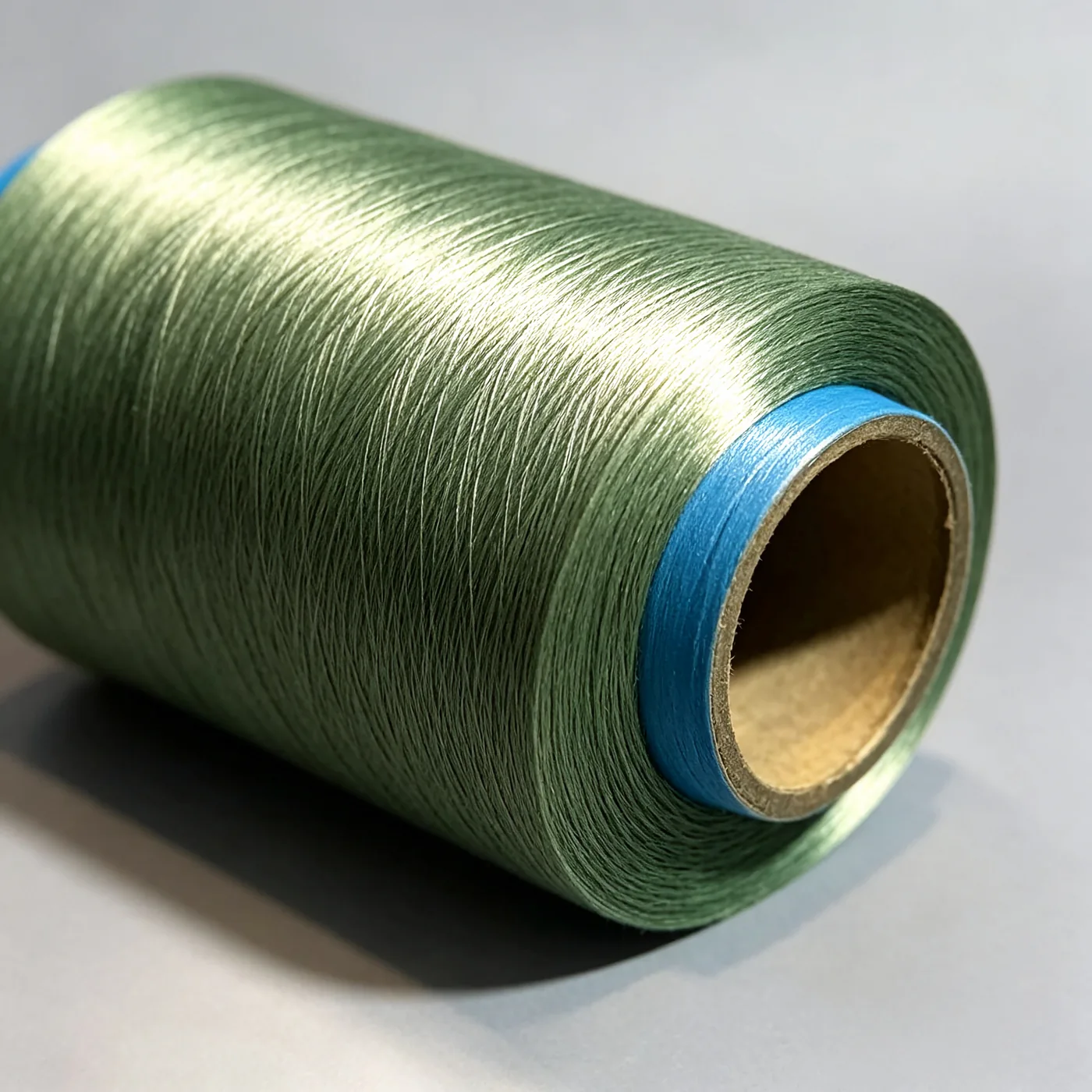

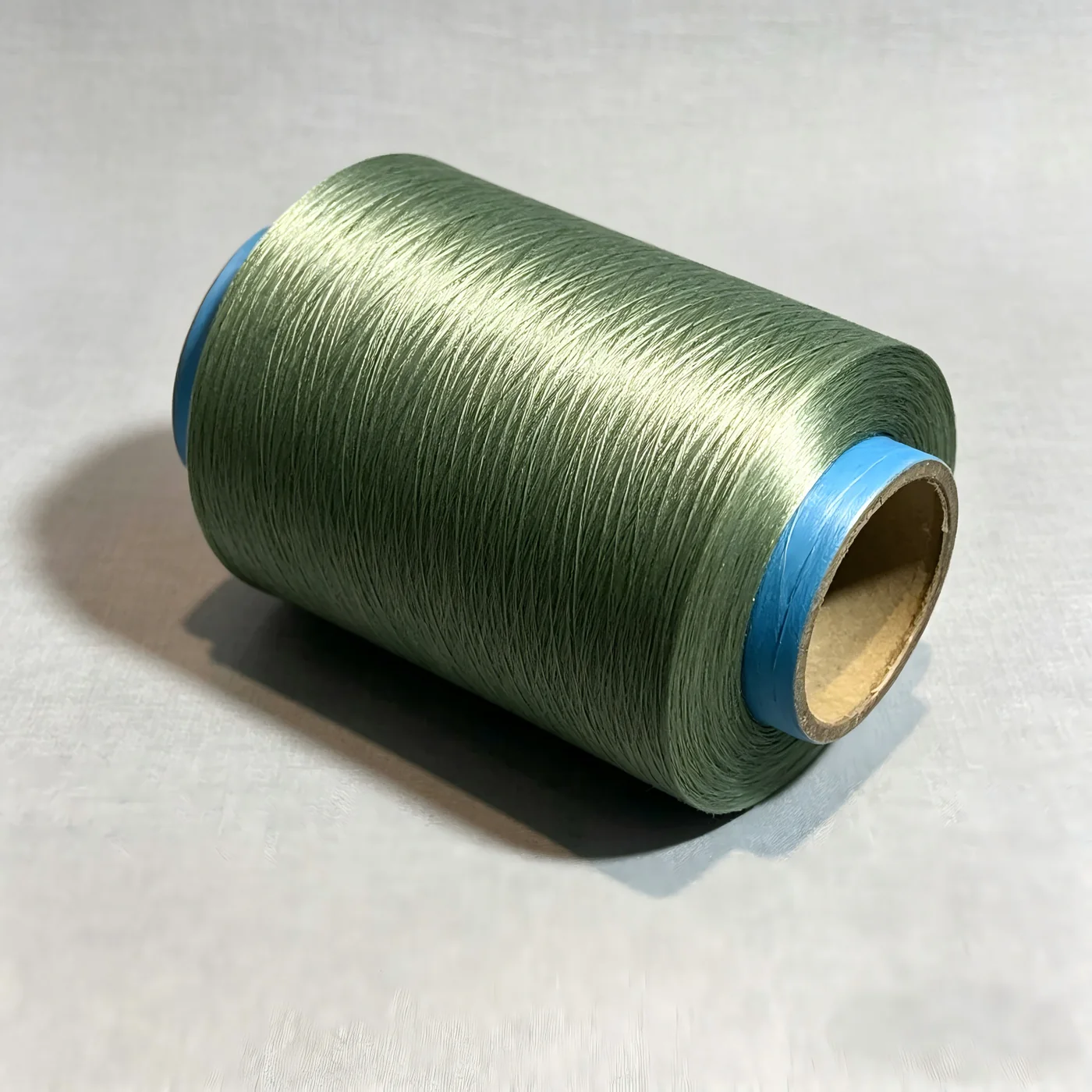

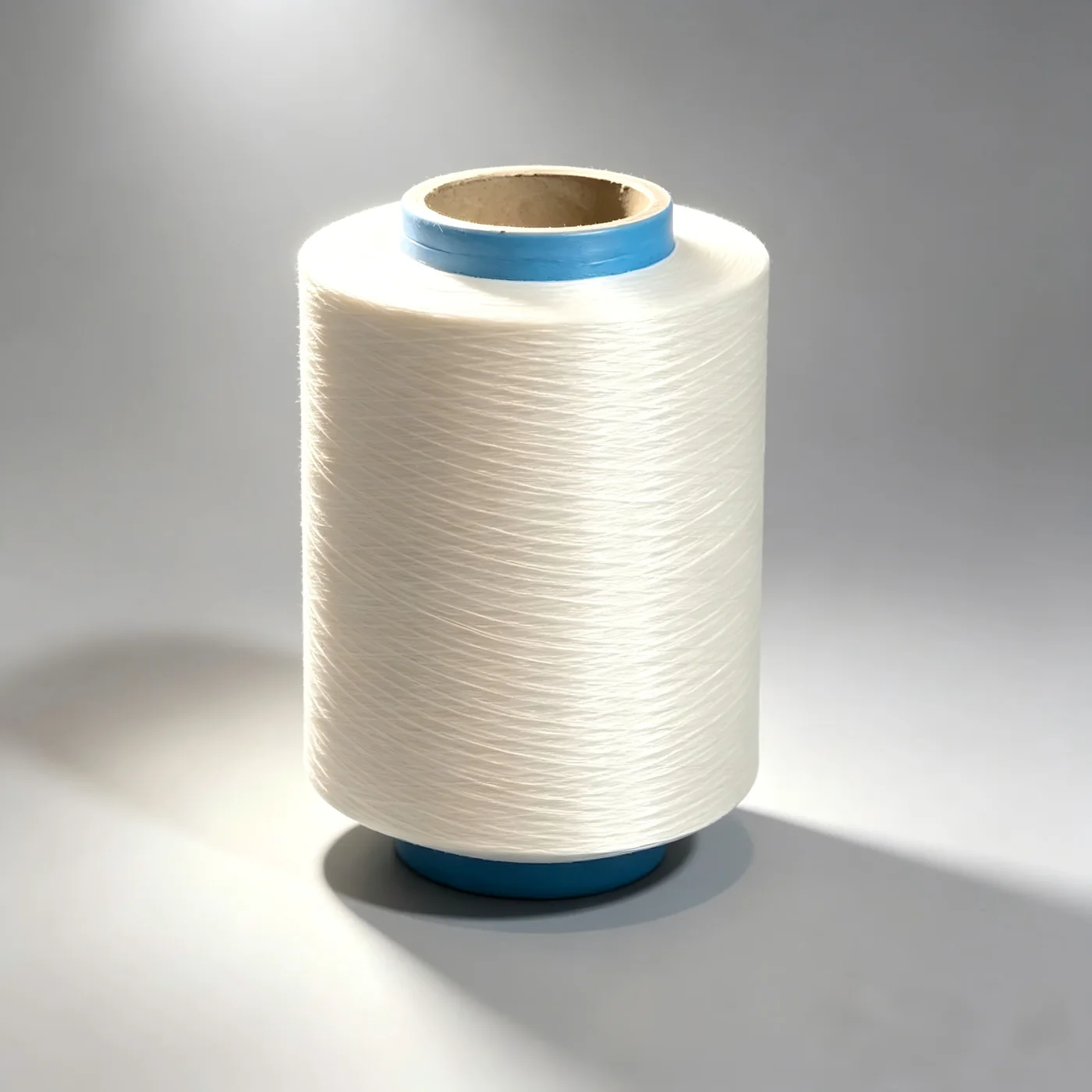

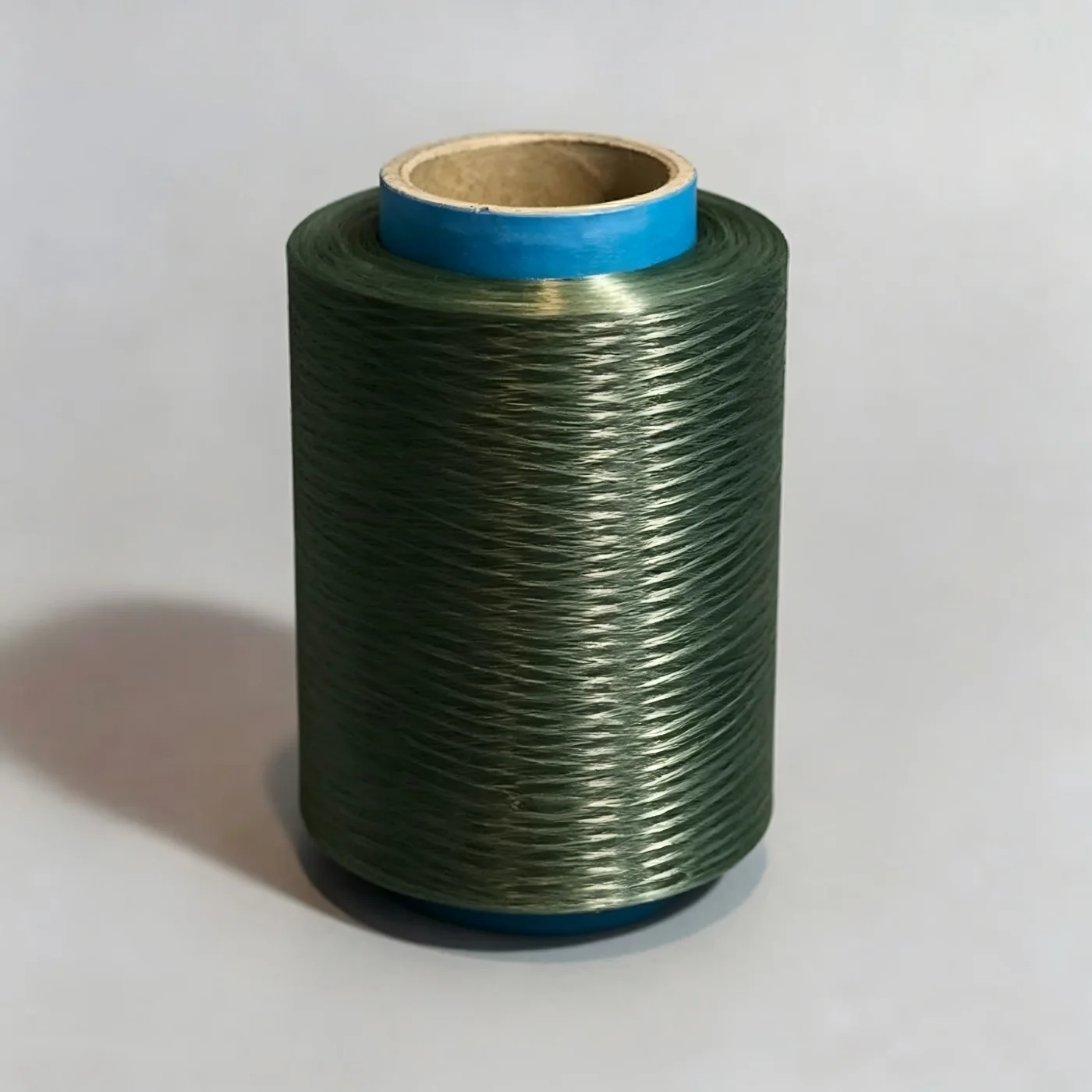

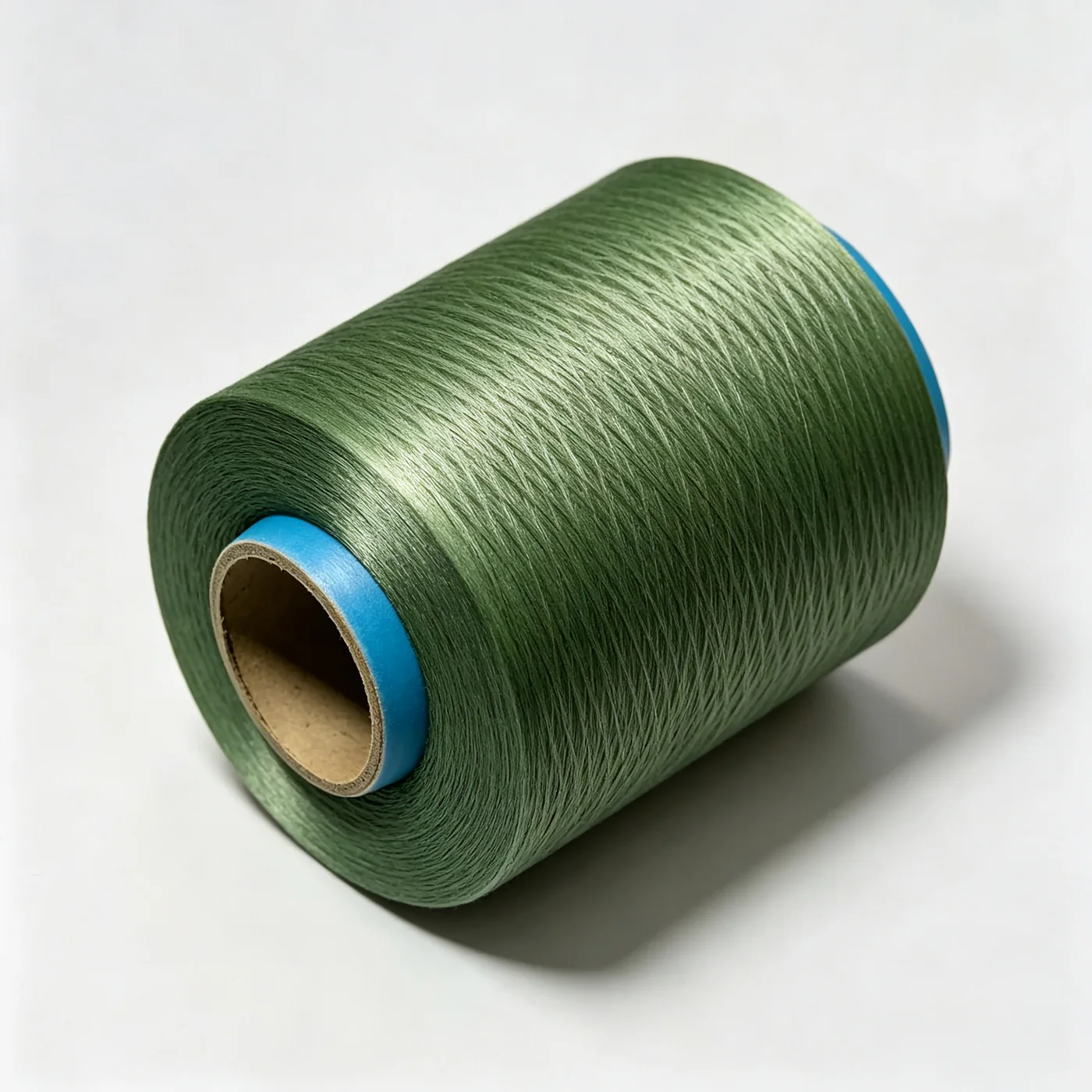

- Colors: White, Green; other colors on request
Typical Technical Data (Reference)
| Property | 200D | 1200D | Test Method |
|---|---|---|---|
| Linear Density (Denier) | 200 ± 10 | 1200 ± 60 | ASTM D885 |
| Filament Type | 100F | 600F | – |
| Tensile Strength (cN/dtex) | ≥ 3.5 | ≥ 3.5 | ASTM D2256 |
| Tensile Modulus (cN/dtex) | ≥ 70 | ≥ 70 | ASTM D2256 |
| Elongation at Break (%) | 15-25 | 15-25 | ASTM D2256 |
| Heat Resistance (Long Term) | 200-220°C | 200-220°C | – |
| Limiting Oxygen Index (LOI) | ≥ 28 | ≥ 28 | ASTM D2863 |
| Moisture Regain (%) | 2.0-4.0 | 2.0-4.0 | ASTM D570 |
| Color | White, Green (others on request) | White, Green (others on request) | – |
Key Features
- High heat resistance
- Excellent chemical stability
- High strength and modulus
- Electrical insulation
- Dimensional stability
Typical Applications
- Personal Protective Equipment: Firefighting suits, heat-resistant clothing, protective gloves
- Industrial Textiles: Thermal insulation, filters, expansion joints
- Electrical Insulation: Cables, electrical tapes, insulating materials
- Friction Materials: Brake pads, clutch facings, sealing materials
- Composite Reinforcement: Honeycomb, prepregs, high-performance composites
Sample & Global Supply
Samples are available. Customized colors and global supply are available for qualified applications.
Technical Note
The above data are typical values for reference only. Final values are subject to our factory’s official TDS.
